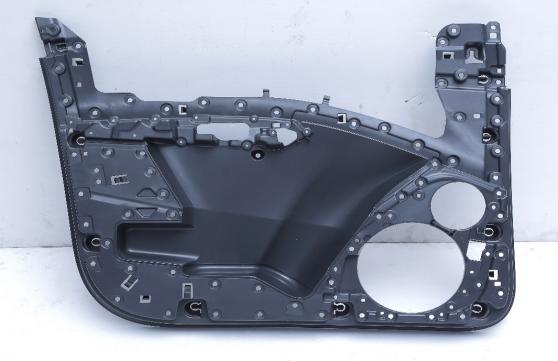

Car Door Panel Injection Mold with Stack Mould Technology
1.Product Introduction
Stacking Door Injection Molds is an important part of the automotive industry as they are used to manufacture the plastic parts that make up the door. These molds require precision and high quality to ensure that the end result meets and meets the requirements of the automotive manufacturer.
Kaihua Moulds is a professional molding company specializing in the production of automotive door panel injection molds with stacking mold technology. With 23 years of rich industry experience, we are committed to producing high quality molds. Our company is equipped with the most advanced technology, enabling us to provide OEM and ODM services. At present, our company has reached in-depth cooperation with Mercedes-Benz, Audi, Volkswagen and other well-known brands.
One of the advantages of choosing Kaihua molds for your stacked door injection molds is our expertise. Our team of designers and engineers have the skills and knowledge needed to create precise and highest quality molds. We are committed to providing our customers with best-in-class solutions that meet their specific needs. What’s more, we always adhere to the customer-centric and constantly forge ahead.
At Kaihua Mould, we understand the importance of automotive mold quality. That's why we use the best materials and technologies in our production process. Our molds are made of high-quality steel that is resistant to harsh environments and has stood the test of time.
Overall, if you are looking for a professional and mature automotive mold company with the expertise of stacked mold door injection molds, then Kaihua Mould is the way to go. Our commitment to quality, precision and customer satisfaction makes us an excellent choice for all your molding needs.
2.Advantages
· Reduce Costs
· The clamping force is only about 10% greater than the single cavity
· Higher injection machine utilization
3.Project Cases:

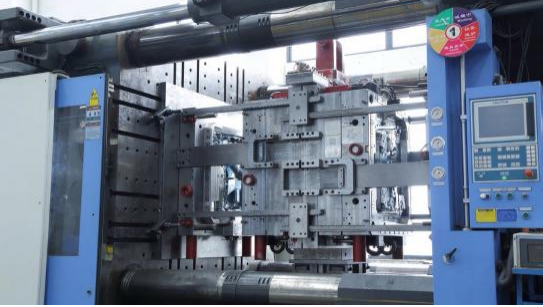

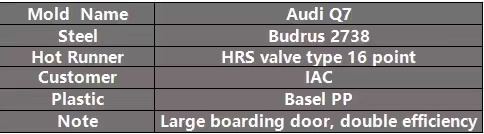

AUDI Q7 stacked die project experience
4.Kaihua Mould Advantage :
Strong Industrial Design
Kaihua Car Lamp Moulds from preliminary research, to engineering design, and then to interactive design, through structural case analysis, lightweight technology reserves, ergonomics research and development, and the practice of replacing steel with plastic, the structural design and appearance design are perfectly unified.
Kaihua has obtained more than 200 patents.
Through the mastery and flexible use of Mucell, Thin Wall, Gas-Assistance, Steel To Plastic and other lightweight technology, Stack Mould, Low-Pressure Injection Molding, In-Mold Degate , Free Spraying and other high efficiency innovation technology,
Provide customers with the best solutions.
|
Type |
Item |
Advantage |
Customer |
|
Leightweight |
Mucell |
Reduce cycle time,Enhance product accuracy,
Remove sink marks, Reduce clamping force and reduce product weight |
Mercedes-Benz, Volkswagen, |
|
Gas Assistance |
Reduce production cost, Improve appearance |
Land Rover, |
|
|
Thin Wall |
Reduce production cost i.e.raw material cost/Injection production cost by reducing product weight, Enhance product dimensional stability |
Geely, Nissan, Toyota |
|
|
Steel to Plastic |
Reduce product weight, Reduce production cost |
Land Rover, |
|
|
Efficiency |
Stack Mould |
Reduce mould cost and production cost |
Audi, IKEA |
|
Low Pressure |
Improve the qualified rate as well as cladding sense |
Audi, Volkswagen, |
|
|
In-Mold Degate |
Reduce labor cost,enhance production efficiency |
Ford, Land Rover, |
|
|
Free Spraying |
Reduce production cost, Environmentally friendly |
Renault, GM |
Machinery
Injection Production Equipment
■ Krauss Maffei 1600T Three-color Injection Molding Machine
1) Three-color injection molding, Core Back function, DIY main nozzle translation and other functions
2) It can be applied to two-color/three-color injection of headlights, chemical foamed door panels, injection-molded compression spoilers, etc.
■ YIZUMI 3300T Injection Molding Machine with 5 Axis Pickup
■ 17 Injection Molding Machines Covering 160T ~ 4500T
Five-Axis Linkage Mold Processing Equipment
■ FIDIA, Italy
■ MAKINO, Japan
■ DMU, German
■ 12 in Total
■ ……
High Precision Spark Machine
■ DAEHAN
■ MAKINO
■ 7 in Total
MAKINO Automation lines
|
Name |
Function |
Application |
Time Put Into Production |
Quantity |
| FIDIA GTS22 | Five-Axis Linkage CNC | Bumper & Dashboard Overall Processing | Oct. 2019 | 3 Units |
| FIDIA D321 | Five-Axis 3+2 CNC | Bumper & Dashboard Overall Processing | Jan. 2020 | 4 Units |
| MAKINO V90S | Five-Axis Linkage CNC | One-time Molding Of Large Top Block | Nov. 2019 | 2 Units |
| MAKINO F8 | Three Axis High Precision CNC | Medium Die And Part Finishing | Oct. 2019 | 2 Units |
| MAKINO A61nx | Horizontal Four-Axis High-Precision CNC | One-time Molding Of Large Top Block | Nov. 2019 | 1 Unit |
| DMU 90 | Five-Axis Linkage CNC | One-step Molding Of Medium-sized Top Block | Jan. 2020 | 1 Unit |
| DMU 75 | Five-Axis Linkage CNC | Small Top Block Is Formed At One Time | Oct. 2019 | 2 Units |
| DAEHAN Spark Machine |
Four-Head Precision Spark Machine | Dashboard & Bumper Edm Processing | Sep. 2019 | 2 Units |
| DAEHAN Spark Machine |
Double Head Precision Spark Machine | Dashboard & Bumper Edm Processing | Jul. 2019 | 3 Units |
| MAKINO Spark Machine |
Precision Spark Machine | Mirror Edm Processing Of Mesh & Electroplated Parts | Oct. 2019 | 2 Units |
| MAKINO Flexible Graphite Automatic Production Line | Precision Graphite Processing Machine | Graphite Electrode Processing | Oct. 2019 | 6 Units |
Integrated injection molding
From product research and development, mold manufacturing, to injection molding, mass production and assembly, the integration of mold injection molding is realized; the volume of injection molded parts can reach 4m², The molding cycle is short, and the surface quality is high, ensuring "fine molds" to produce "high-quality products".
Strict Quality Control
Implement the project engineer responsibility system, set up a quality control department, and set up an incoming material inspection team, a CMM inspection team, and a shipping and dismantling inspection team. Effectively control quality and progress.
Top Partner
Frequency Asked Questions
Q: Can you do the finished product or parts Only?
A: Sure, We could do finished product according the customized mold. And make the mold also.
Q: Can I test my idea/product before committing to mould tool manufacture?
A: Sure, we can use CAD drawings to make models and prototyping for design and functional evaluations.
Q: Can you do Assemble?
A: Of cause we could do. Our factory with assembly room.
Q: What shall we do if we do not have drawings?
A: Please send your sample to our factory,then we can copy or provide you better solutions. Please send us pictures or drafts with dimensions(Length,Hight,Width),CAD or 3D file will be made for you if placed order.
Q: What type of mould tool do I need?
A: Mould tools can be either single cavity (one part at a time) or multi-cavity (2,4, 8 or 16 parts at a time). Single cavity tools are generally used for small quantities, up to 10,000 parts per year whereas multi-cavity tools are for larger quantities. We can look at your projected annual requirements and recommend which would be best for you.
Q: I have an idea for a new product, but not sure if it can be manufactured. Can you help?
A: Yes! We are always happy to work with potential customers to evaluate the technical feasibility of your idea or design and we can advise on materials, tooling and likely set-up costs.
